moduleName: eml-software

moduleDescription:


              The eml-software module - Software specific
              information




recommendedUsage: All datasets where software was used in
        the analysis or creation of the dataset.

standAlone: yes

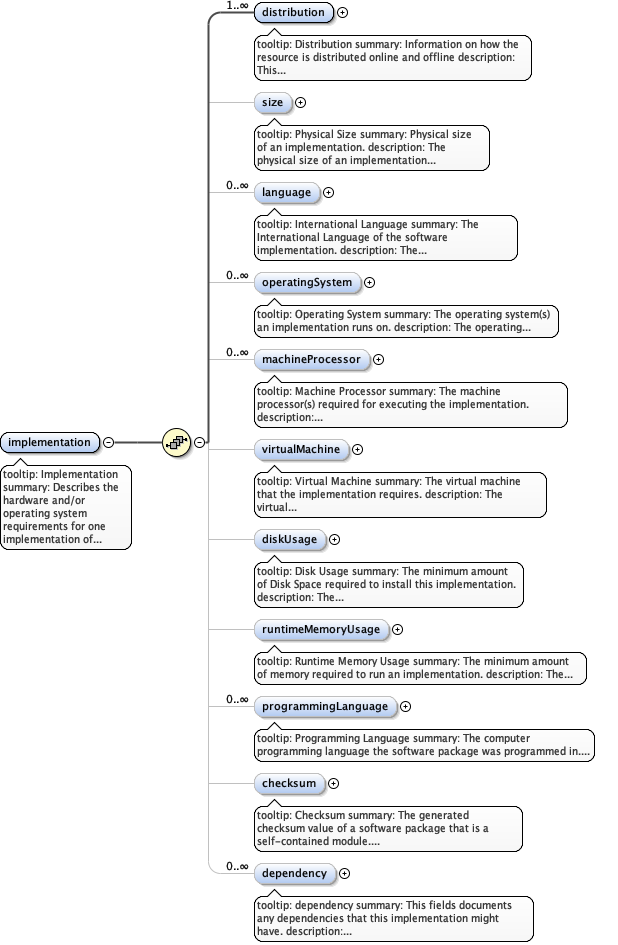

tooltip: Implementation

summary: Describes the hardware and/or operating system
              requirements for one implementation of a package.

description: Implementation describes the hardware, operating
              system resources a package runs on. Note, a package can have
              multiple implementations. So for example, a package may be
              written in java and the package may run on numerous hardware
              and/or operating systems like Pentium/Linux, Pentium/NT and so
              on. Hardware and Software descriptions that have different
              requirements can be placed here.

example: Please see the examples for each sub-element of the
              implementation type.

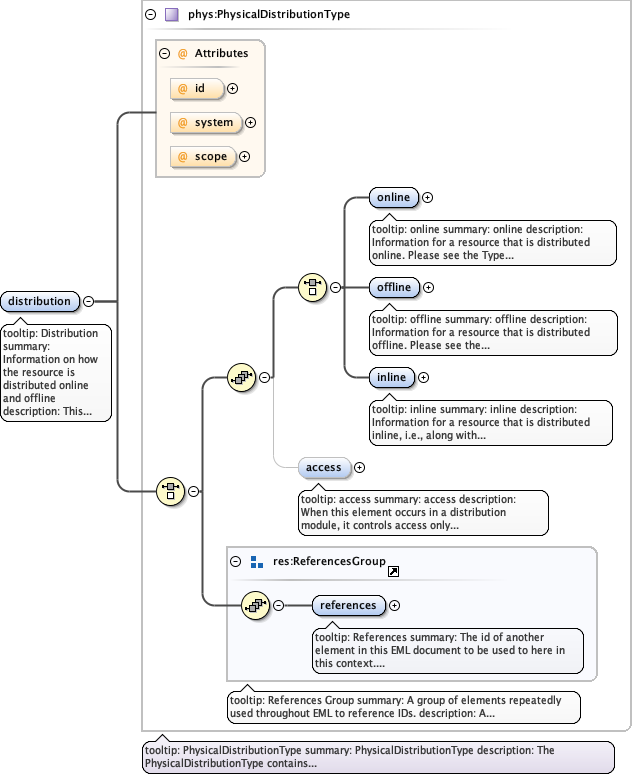

tooltip: Distribution

summary: Information on how the resource is distributed
                   online and offline

description: This field provides information on how the
                   resource is distributed online and offline. Connections to
                   online systems can be described as URLs and as a list of
                   relevant connection parameters.

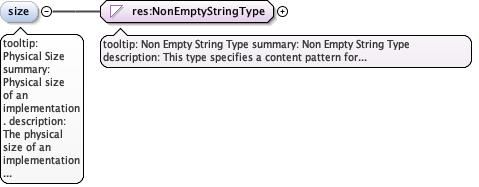

tooltip: Physical Size

summary: Physical size of an implementation.


description: The physical size of an implementation on
                    disk.

example: 100 Megabytes

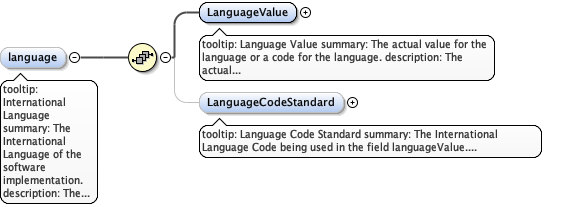

tooltip: International Language

summary: The International Language of the software
                    implementation.

description: The International Language of the software
                    implementation.

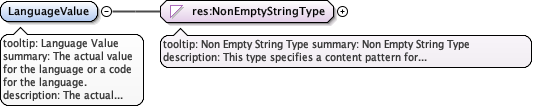

tooltip: Language Value

summary: The actual value for the language or
                          a code for the language.

description: The actual value for the language or
                          a code for the language.

example: english

example: eng

tooltip: Language Code Standard

summary: The International Language Code being
                          used in the field languageValue.

description: The International Language Code being
                          used in the field languageValue. See
                          http://www.loc.gov/standards/iso639-2/

example: ISO639-2

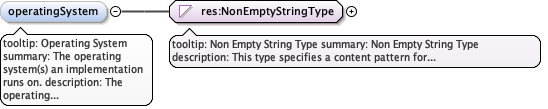

tooltip: Operating System

summary: The operating system(s) an implementation runs
                    on.

description: The operating system(s) an implementation runs
                    on.

example: Linux

example: Windows 95

example: Windows NT4

example: Windows XP

example: Sun Solaris 2.8

example: Mac OS X

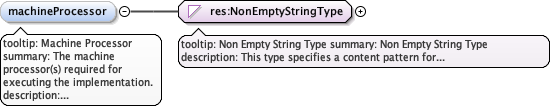

tooltip: Machine Processor

summary: The machine processor(s) required for
                    executing the implementation.

description: The Machine Processor required for
                    executing the implementation.

example: Pentium II

example: Intel 486

example: SUN Sparc

example: Motorola

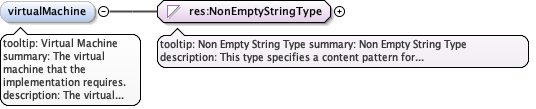

tooltip: Virtual Machine

summary: The virtual machine that the implementation
                    requires.

description: The virtual machine that the implementation
                    requires.

example: Java Virtual Machine 1.2

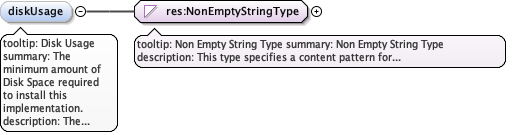

tooltip: Disk Usage

summary: The minimum amount of Disk Space required to
                    install this implementation.

description: The minimum amount of Disk Space required to
                    install this implementation.

example: 220 Megabytes

example: 15 MB

example: 100 kB

tooltip: Runtime Memory Usage

summary: The minimum amount of memory required to run
                    an implementation.

description: The minimum amount of memory required to run
                    an implementation.

example: 32 Megabytes

example: 128 MB

tooltip: Programming Language

summary: The computer programming language the software
                    package was programmed in.

description: The computer programming language the software
                    package was programmed in.

example: C++

example: Java

example: C

example: C#

example: Perl

example: Cobol

example: Fortran

example: Lisp

example: Visual Basic

example: VBA

example: Bourne Shell Script

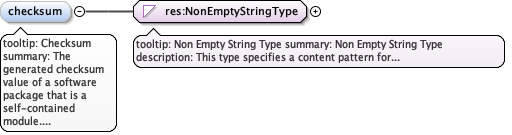

tooltip: Checksum

summary: The generated checksum value of a software
                    package that is a self-contained module.

description: The generated checksum value of a software
                    package that is a self-contained module.

example: $sum software.jar 27021 22660

tooltip: dependency

summary: This fields documents any dependencies
                    that this implementation might have.

description: This fields documents any dependencies
                    that this implementation might have.

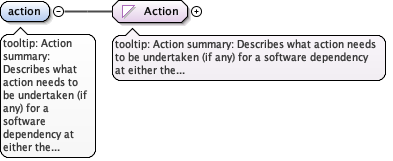

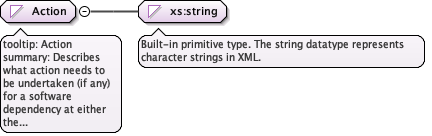

tooltip: Action

summary: Describes what action needs to be undertaken (if any)
           for a software dependency at either the software package or
           implementation level.

description: This element and its enumerations of assert and
           install can be used as commands by a software application to carry
           out these actions on software package dependencies. This is a change
           from how we have used all previous elements within eml. Up until now
           all other elements have been simply metadata designed to describe
           data, literature citations, etc... with the Action element we can
           use this module as a command to carry out the action.

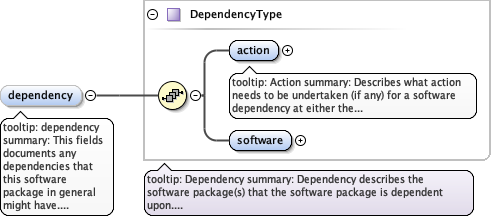

tooltip: dependency

summary: This fields documents any dependencies
              that this software package in general might have.

description: This fields documents any dependencies
              that this software package in general might have.

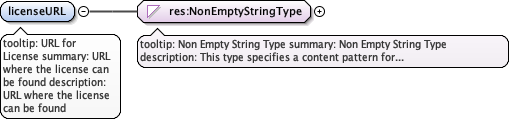

tooltip: URL for License

summary: URL where the license can be found

description: URL where the license can be found

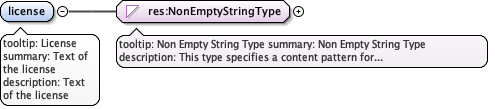

tooltip: License

summary: Text of the license

description: Text of the license

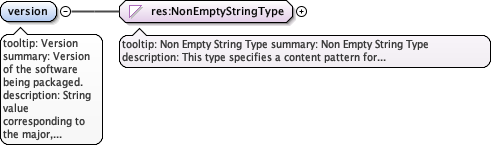

tooltip: Version

summary: Version of the software being
              packaged.

description: String value corresponding to the major, minor,
              custom, and build version.

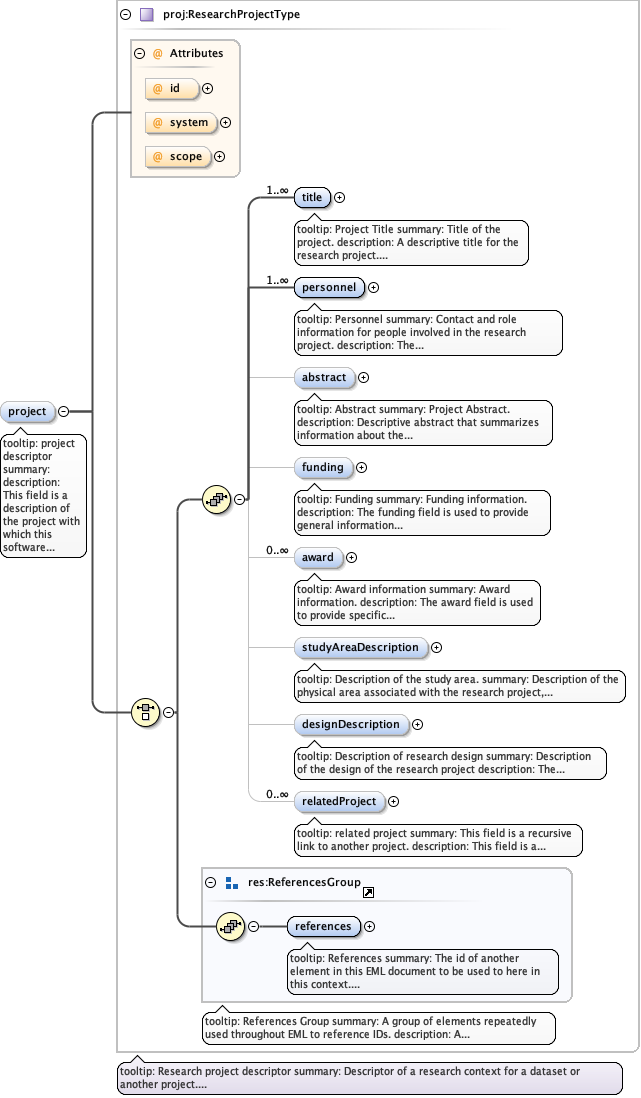

tooltip: project descriptor

summary:

description: This field is a description of the project with
           which this software product is related.  Please see the eml-project
           module for more information.

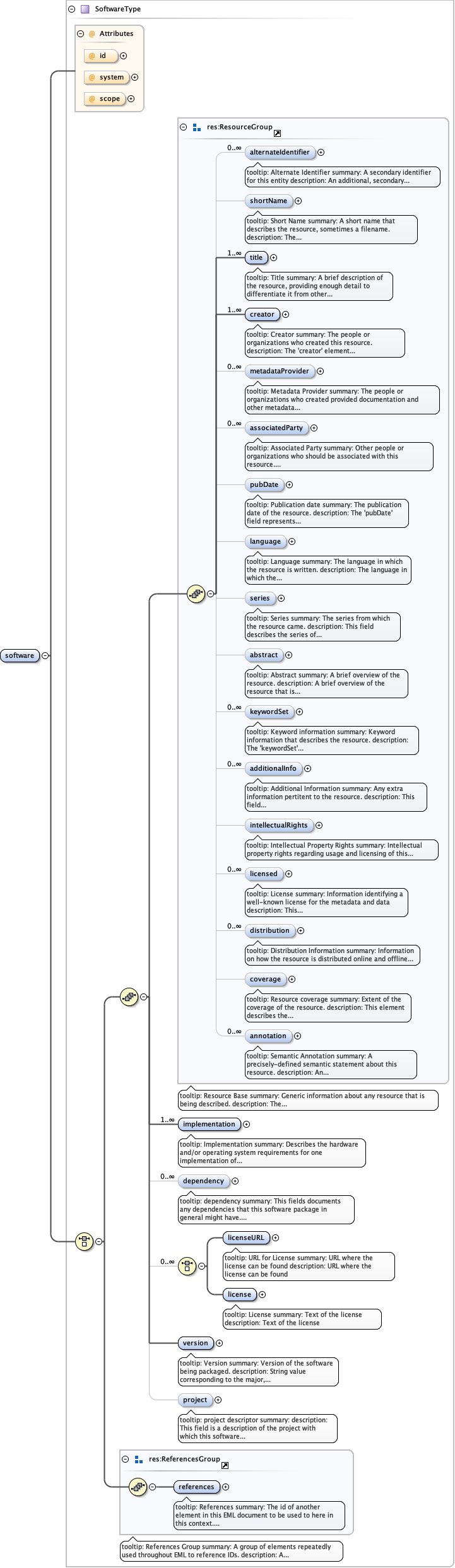

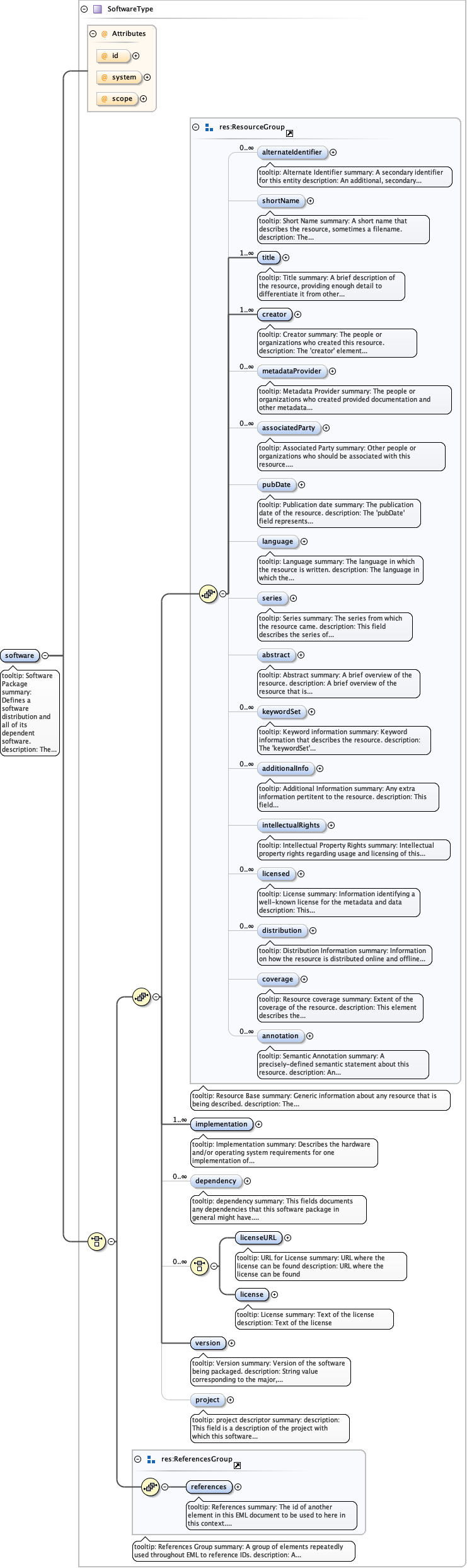

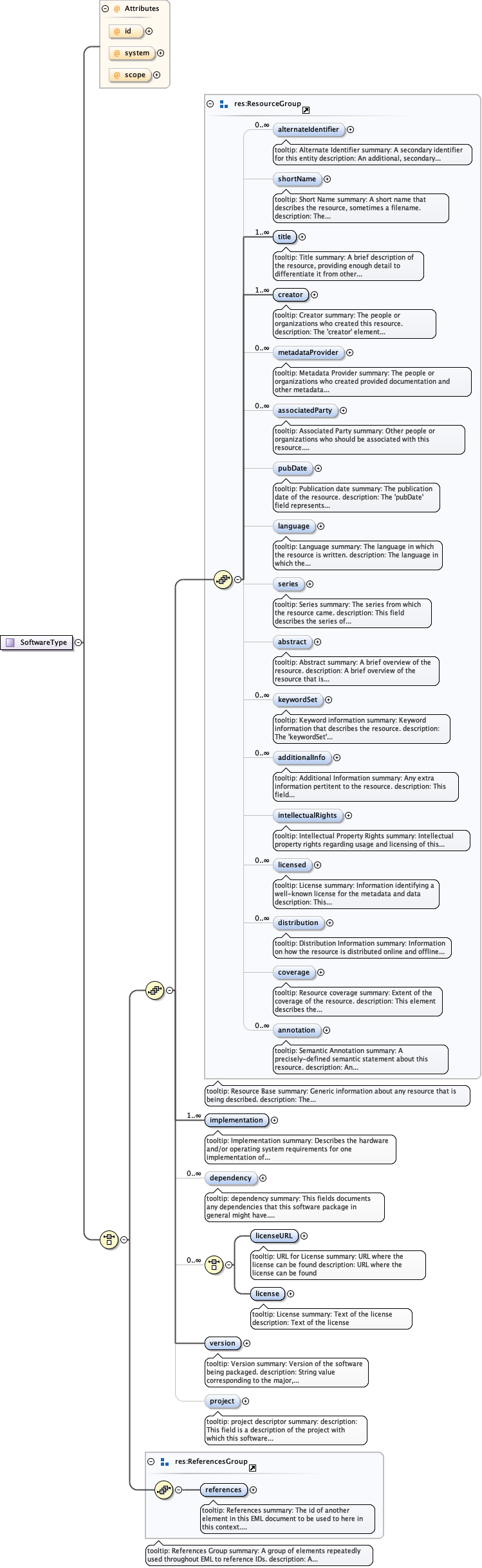

tooltip: Software Package

summary: Defines a software distribution and all of its dependent
        software.

description: The software element contains general information
        about a software resource that is being documented. This field is
        intended to give information for software tools that are needed to
        interpret a dataset, software that was written to process a resource,
        or software as a resource in itself. It is based on eml-resource and
        Open Software Description (OSD) a W3C submission. There can be multiple
        implementations within a software package because a physical software
        package can run on multiple hardware and/or operating systems. See
        implementation element documentation for a more thorough
        explanation.

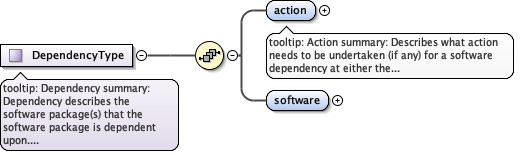

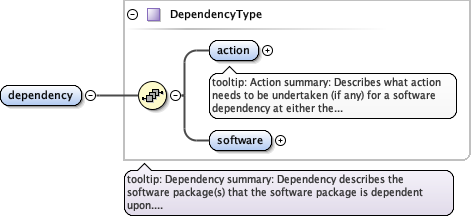

tooltip: Dependency

summary: Dependency describes the software package(s) that the
          software package is dependent upon.

description: The dependency element is recursive. It is a
          sub-element of the software Element but it also has as a sub-element
          its parent element Software Package. Dependency has been made optional
          because to make it mandatory does not allow the recursion to end.
          Dependency has also been made a sub-element of implementation because
          there can be both implementation and package level dependencies within
          a package.

tooltip: Action

summary: Describes what action needs to be undertaken (if any) for
        a software dependency at either the software package or implementation
        level.

description: This element and its enumerations of assert and
        install can be used as commands by a software application to carry out
        these actions on software package dependencies. This is a change from
        how we have used all previous elements within eml. Up until now all
        other elements have been simply metadata designed to describe data,
        literature citations, etc... with the Action element we can use this
        module as a command to carry out the action.
