moduleName: eml-semantics

moduleDescription:


                The eml-semantics module - Semantic annotations for formalized
                statements about EML components




recommendedUsage: all datasets

standAlone: yes

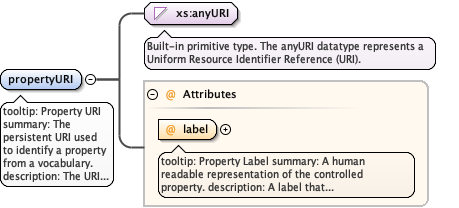

tooltip: Property URI

summary: The persistent URI used to identify a property from a vocabulary.


description: The URI for a property that is drawn from a controlled
                        vocabulary, and that links the subject of this annotation
                        (which is implied by its parent element) to the annotation value.
                        The propertyURI represents a semantically well-defined concept
                        that one wants to apply to an element within EML.
                        These properties should be precisely defined,
                        including defining various relationships to related concepts.
                        Property URIs are typically drawn from formal ontologies that
                        provide well-defined logical semantics and provide for various
                        types of reasoning about equivalence and overlap.
                        Property URIs should be persistent and unique over decades,
                        and the meaning of the URI should
                        be stable over time as well. These URIs are usually constructed
                        using an additional abstraction layer via link resolvers,
                        rather than directly resolving to the term definition itself.
                        Thus, when resolving the propertyURI, software user agents should
                        be prepared to follow multiple redirects before finally
                        resolving the current location of the definition.
                        However, there is no requirement that propertyURIs need to be
                        resolvable, and metadata parsers should expect to find
                        propertyURIs that do not resolve and are only used as unique
                        URIs for the property (i.e., a name).



example: http://ecoinformatics.org/oboe/oboe.1.2/oboe-characteristics.owl#ofCharacteristic

example: http://ecoinformatics.org/oboe/oboe.1.2/oboe-standards.owl#usesStandard

tooltip: Value URI

summary: The persistent URI used to identify a value from a vocabulary.


description: The URI for a value that is drawn from a controlled
                  vocabulary such as a published ontology or controlled term list. The
                  value represents the object of a semantic statement in which the
                  subject is the containing element, the property is defined by
                  the sibling propertyURI, and this valueURI element represents
                  the object.  These values should be precisely defined,
                  including defining various relationships to related concepts.
                  Value URIs are typically drawn from formal ontologies that
                  provide well-defined logical semantics and provide for various
                  types of reasoning about value equivalence and overlap.
                  Value URIs should be persistent and unique over decades,
                  and the meaning of the values associated with the URI should
                  be stable over time as well. These URIs are usually constructed
                  using an additional abstraction layer via link resolvers,
                  rather than directly resolving to the term definition itself.
                  Thus, when resolving the valueURI, software user agents should
                  be prepared to follow multiple redirects before finally
                  resolving the current location of the value definition.
                  However, there is no requirement that valueURIs need to be
                  resolvable, and metadata parsers should expect to find
                  valueURIs that do not resolve and are only used as unique
                  URIs for the value (i.e., a name)


example: http://ecoinformatics.org/oboe/oboe.1.2/oboe-characteristics.owl#Mass

example: http://ecoinformatics.org/oboe/oboe.1.2/oboe-standards.owl#Kilogram

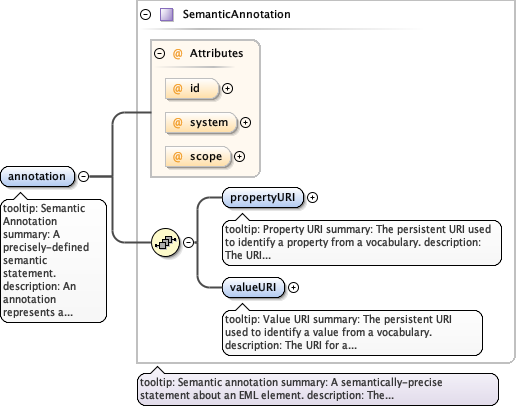

tooltip: Semantic Annotation

summary: A precisely-defined semantic statement.


description: An annotation represents a precisely-defined semantic
            statement that is used to semantically label another structure
            within EML, such as an attribute, entity, or dataset. The annotation
            is composed of a subject (implied by the element containing
            the annotation or pointed at from within eml:additionalMetadata), a
            property that defines the relationship between the
            subject and the object of the statement, and the value of that
            property. This is equivalent to RDF Statements that consist of a
            Subject, Predicate, and Object.  More concretely, the annotation
            provides a way to state that an element within EML has a specific
            property with a specific value.


example: For example, a common annotation would state that a containing
            'attribute' uses a measurement unit of 'grams'. This would be equivalent
            to defining a statement using the OBOE design pattern that says:
            'attribute7' 'oboe:usesStandard' 'oboe:Gram', where 'attribute7' is
            shorthand for the attribute in EML containing the annotation, and
            'oboe:' is shorthand for the full OBOE URI. In this example,
            'attribute7' is the subject represented as the id of the attribute
            containing the annotation, 'oboe:standard' is the propertyURI for the
            statement, and 'oboe:Gram' is the object of the statement.

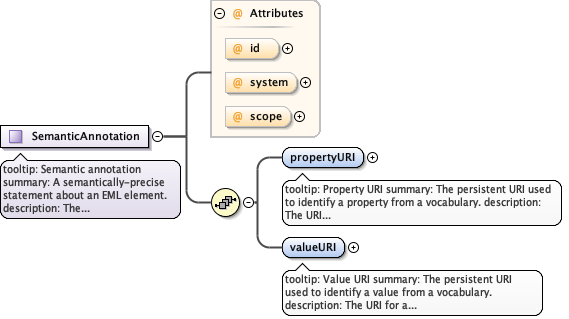

tooltip: Semantic annotation

summary: A semantically-precise statement about an EML element.


description:

            The SemanticAnnotation Type contains
                elements that are used to associate a semantic statement using
                a property and value from specific formal vocabularies with
                other elements within EML.  For example, one
                might want to provide the precise set of semantic statements that
                clarify the measurement semantics of an attribute (variable)
                within a data set, or associate a specific statement with a
                data table or dataset.
                The eml-semantics module defines an 'annotation' element and
                associated type that can be used within EML resources (dataset,
                software, etc.), EML Entities (dataTable, spatialRaster,
                spatialVector, otherEntity), and EML Attributes.  They can also
                be applied within the EML additionalMetadata field to label
                arbitrary structures within EML, in which case the subject of
                the annotation is the element listed in the describes element
                within the additionalMetadata field.




example: Please see the examples for the particular
        subfields.

tooltip: Property Label

summary:
                                    A human readable representation of the controlled property.


description:
                                    A label that provides a human readable representation of
                                    the controlled property. The label is often used to represent
                                    the controlled property when displaying annotations in
                                    software. The label is often redundant with one or more labels
                                    that are defined in the controlled vocabulary itself,
                                    but is repreated here within the EML document to make it easy
                                    for consumers to display the annotation to users.  Other
                                    labels, including labels in multiple languages, may often be
                                    accessible from within the ontology or controlled
                                    vocabularly accessible at the propertyURI.  Property definitions
                                    and relationships to other properties are also typically
                                    provided within the vocabularly accessible at the propertyURI.
                                    Software and people may be able to resolve the URI to find out
                                    the definition and retrieve additional labels and other metadata
                                    for presentation to users.


example: has characteristic

example: uses protocol

tooltip: Value Label

summary:
                                  A human readable representation of the controlled value.


description:
                                  A label that provides a human readable representation of
                                  the controlled value. The label is often used to represent the
                                  controlled value when displaying annotations in software. The
                                  label is often redundant with one or more labels that are
                                  defined in the controlled vocabulary itself, but is repreated
                                  here within the EML document to make it easy for consumers to
                                  display the annotation to users.  Other labels, including
                                  labels in multiple languages, may often be accessible from
                                  within the ontology or controlled vocabularly accessible at
                                  the valueURI.  Value definitions and relationships to
                                  other terms are also typically provided within the vocabularly
                                  accessible at the valueURI.  Software and people can resolve
                                  the value URI to find out the definition of the value and
                                  retrieve additional labels and other metadata about the value
                                  for presentation to users.


example: Mass

example: Kilogram

example: Net Primary Production

example: Carbon

example: Density
