'$RCSfile: eml-dataTable.xsd,v $'
       Copyright: 1997-2002 Regents of the University of California,
                            University of New Mexico, and
                            Arizona State University
        Sponsors: National Center for Ecological Analysis and Synthesis and
                  Partnership for Interdisciplinary Studies of Coastal Oceans,
                     University of California Santa Barbara
                  Long-Term Ecological Research Network Office,
                     University of New Mexico
                  Center for Environmental Studies, Arizona State University
   Other funding: National Science Foundation (see README for details)
                  The David and Lucile Packard Foundation
     For Details: http://knb.ecoinformatics.org/

        '$Author: obrien $'
          '$Date: 2009-02-25 23:51:54 $'
      '$Revision: 1.47 $'
    This program is free software; you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation; either version 2 of the License, or
    (at your option) any later version.
    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.
    You should have received a copy of the GNU General Public License
    along with this program; if not, write to the Free Software
    Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA

moduleName: eml-dataTable

moduleDescription:


            The eml-dataTable module - Logical information
            about data table entities




recommendedUsage: The EML dataTable Module is used to document
        datasets with one or more data tables.

standAlone: yes

tooltip: Attribute List

summary: The list of attributes associated with this
              entity.

description: The list of attributes associated with this
              entity.  For more information see the eml-attribute
              module.

tooltip: Constraint

summary:

description: Description of any relational constraints on '
              this entity.  For more information see the eml-constraint
              module.

tooltip: Case sensitivity

summary: Specification of text case sensitivity in the
              dataTable.

description: The caseSensitive element
              specifies text case sensitivity of the data in the
              dataTable. The valid values are yes or no. If it is set to
              yes, then values of attributes that differ only in case (e.g.,
              LOW, low) represent distinct values.  If set to no, then values
              of attributes that differ only in case represent the same value.


example: yes

example: no

tooltip: Number of records

summary: The integer count of the number of records in the
              dataTable.

description: The numberOfRecords element contains a count
              of the number of records in the dataTable. This is typically an
              integer value, and only includes records that represent
              observations. It would not include any details of physical
              formatting such as the number of header lines (see eml-physical
              for that information).

example: 975

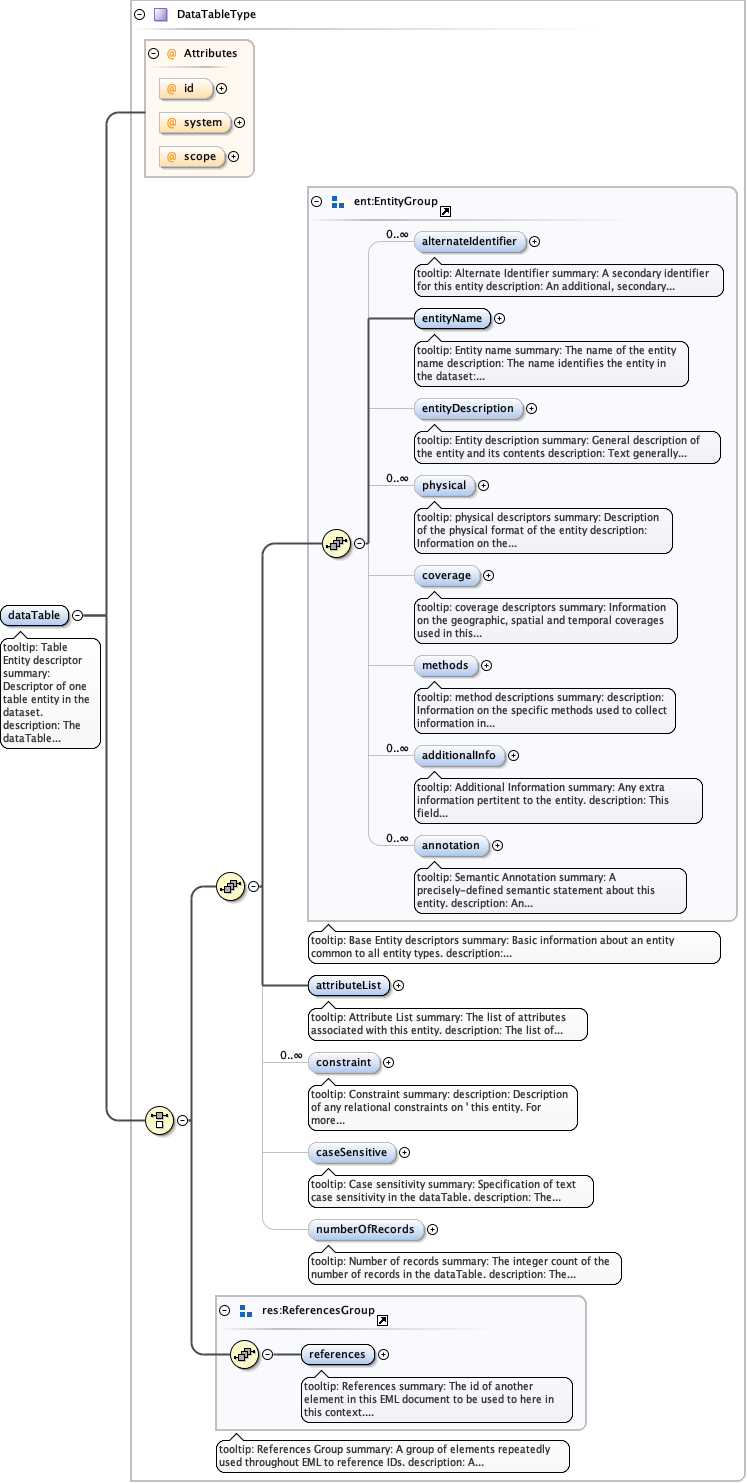

tooltip: Table Entity descriptor

summary: Descriptor of one table entity in the
        dataset.

description: The dataTable element is a descriptor of one entity in
        the dataset identified by its name. This element can contain
        information about the dataTable's orientation, number of records, case
        sensitivity, and temporal, geographic and taxonomic coverage. Because

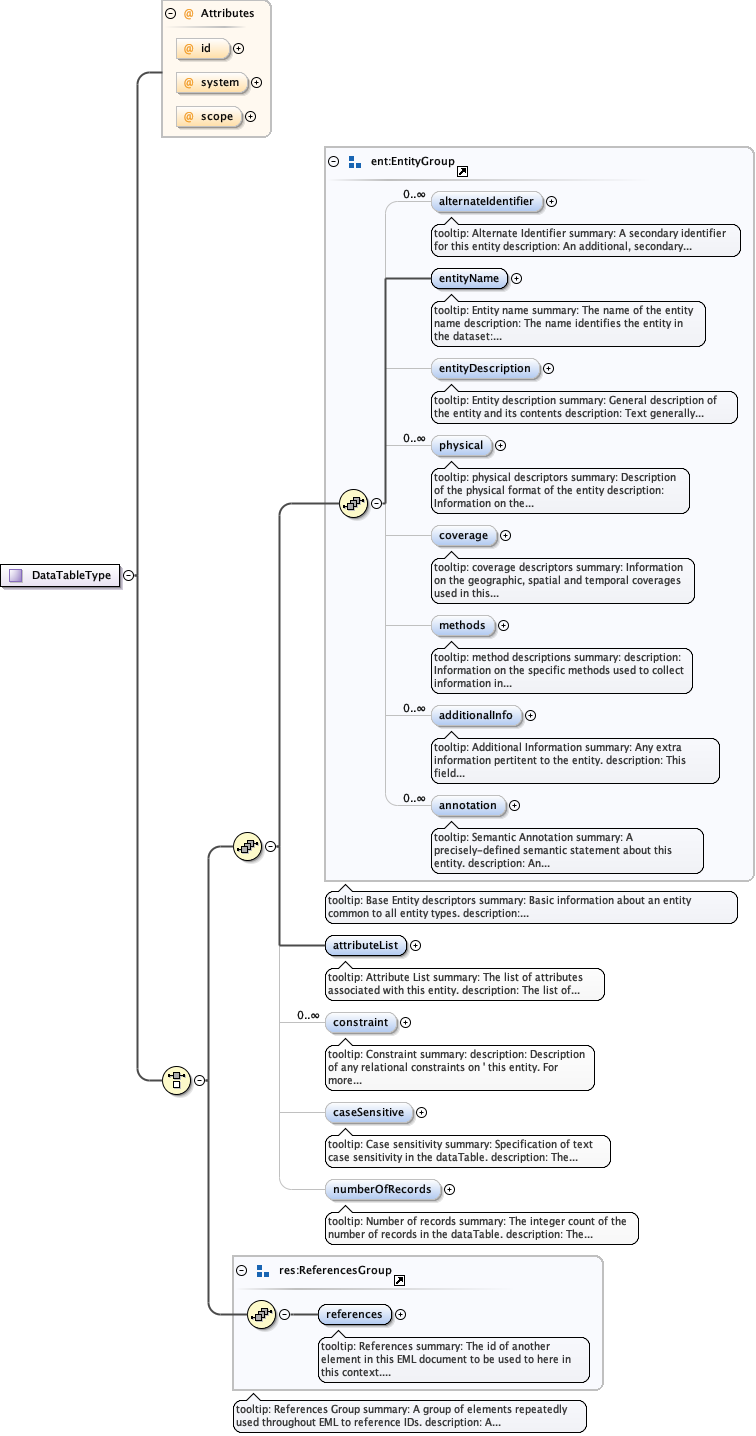

        the dataTable element refers to the complex type 'DataTableType', it
        must contain all the elements defined for the type.
        description for DataTableType to review component element
        rules.
